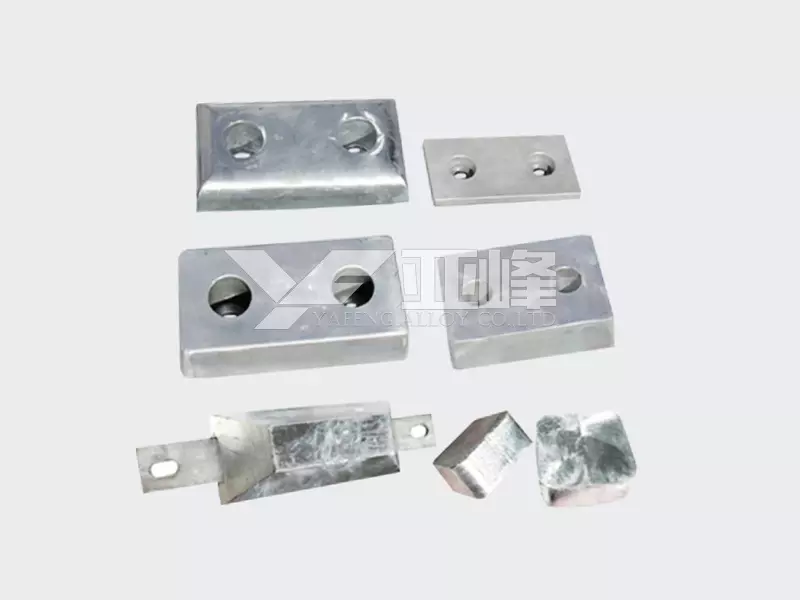

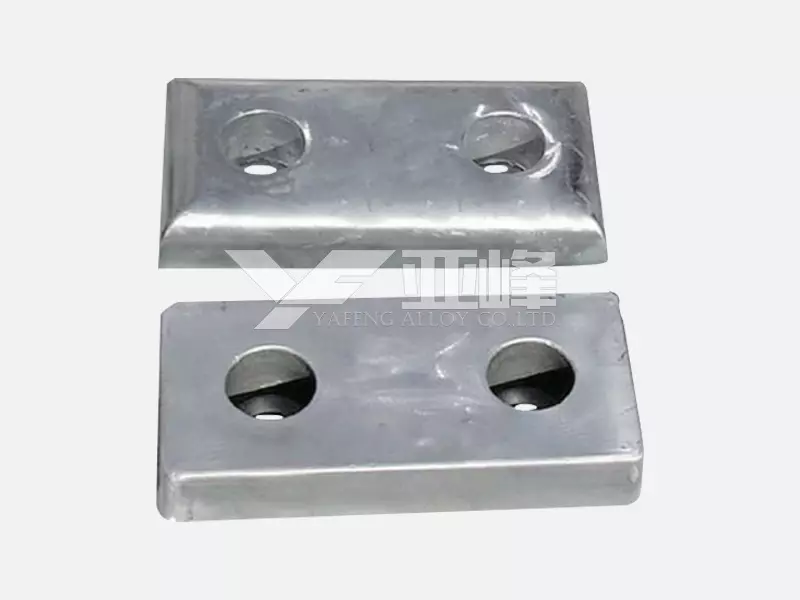

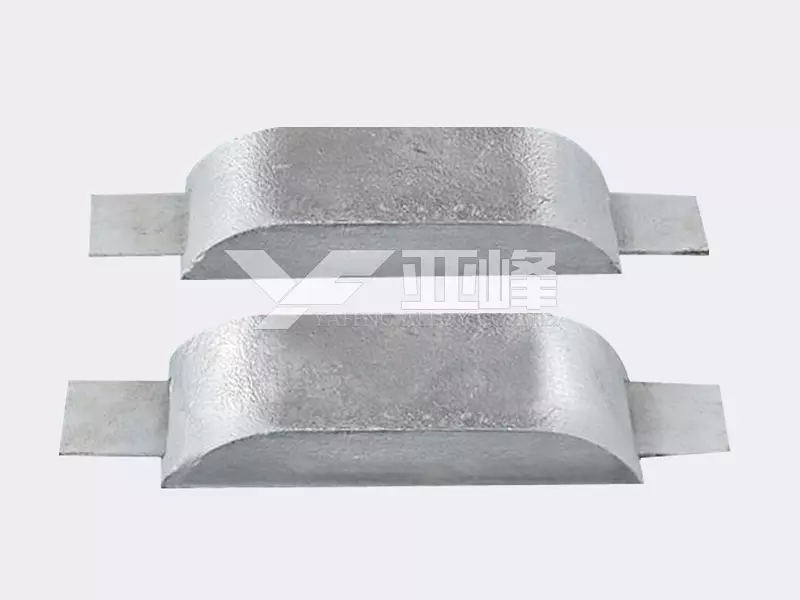

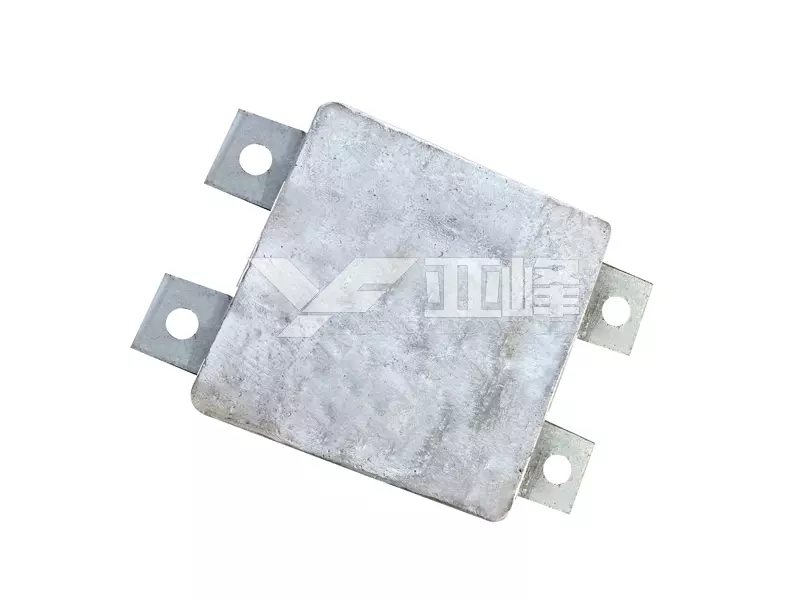

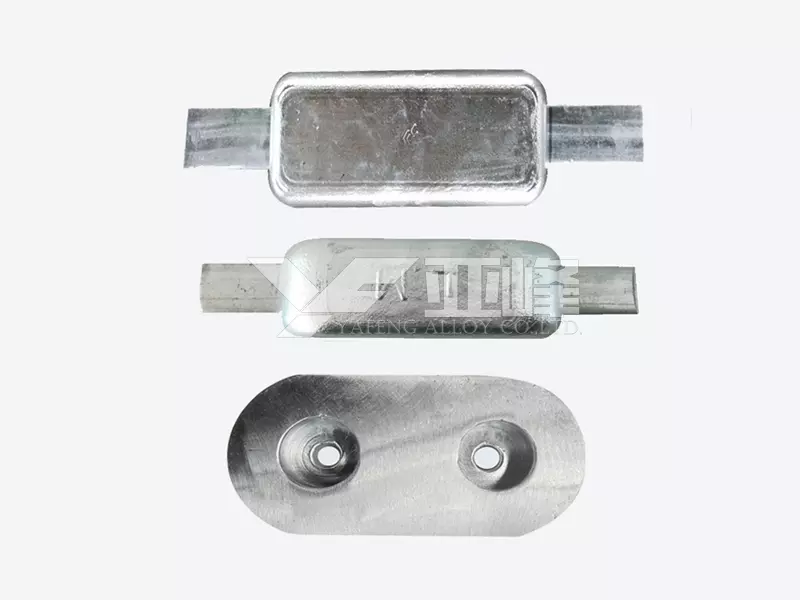

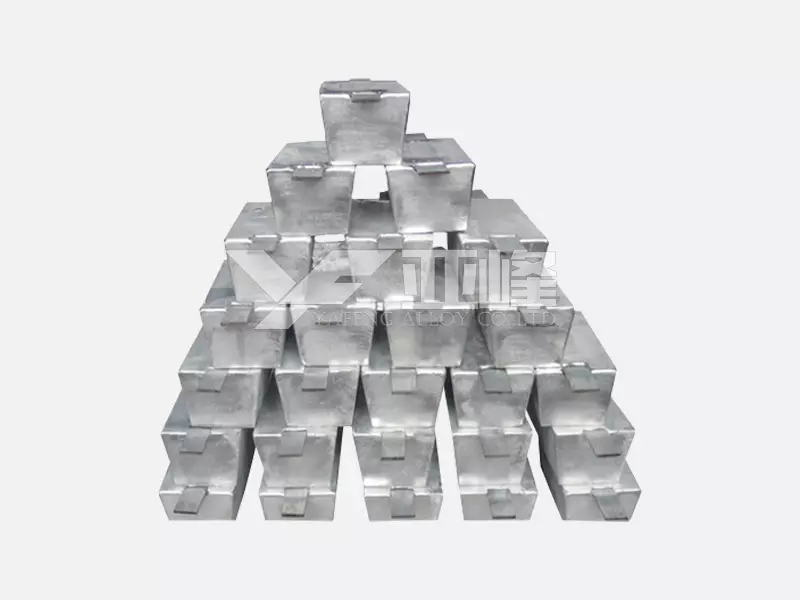

Aluminum Alloy Sacrificial Anodes for Hulls

Aluminum Alloy Sacrificial Anodes for Hulls

Brand: Yafeng

MOQ: 20 Pieces

Delivery time: 7 Day

Commonly used aluminum alloy anodes include Al-Zn-In and Al-Zn-Hg systems, suitable for cathodic protection of structures in seawater environments such as ships, port and marine facilities, seawater cooling systems, and sedimentation zones of storage tanks.

Previous: Aluminum Alloy Sacrificial Anodes for Seawater Cooling Water Systems

Next: Aluminum alloy sacrificial anodes inside storage tanks

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Country

Message *

Products

Magnesium alloy sacrificial anode series

Aluminum alloy sacrificial anode series

Zinc alloy sacrificial anode series

External current protection series

Cathodic protection detection series

Cathodic protection supporting series

Lightning protection device series

product

Custom-Shaped Magnesium Alloy Sacrificial Anodes

High-potential magnesium alloy sacrificial anode

Magnesium Alloy Sacrificial Anode

Sacrificial Anodes for Casing

Latest News

Combined application of wind-erosion-resistant strip anodes and intelligent test piles

How to Optimize Strip Anode Lifespan Through Potential Monitoring

The Impact of Strip Anode Material Selection on Test Pile Maintenance Frequency

How Test Pile Data Collection Optimizes Strip Anode Lifespan

The Impact of New Materials on Test Pile Monitoring Accuracy

Types	Chemical Composition (%)
	Zn	In	Cd	Sn	Mg	Si	Ti	Impurities, not greater than			Ai
	Zn	In	Cd	Sn	Mg	Si	Ti	Si	Fe	Cu	Ai
Al-Zn-ln-Cd	2.5-4.5	0.018-0.050	0.005-0.002	---	---	---	---	0.1	0.15	0.01	Allowance
Al-Zn-ln-Sn	2.2-5.2	0.020-0.045	---	0.018-0.035	---	---	---	0.1	0.15	0.01	Allowance
Al-Zn-ln-Si	5.5-7.0	0.025-0.035	---	---	---	0.10-0.15	---	0.1	0.15	0.01	Allowance
Al-Zn-ln-Sn-Mg	2.5-4.0	0.020-0.050	---	0.025-0.075	0.50-1.00	---	---	0.1	0.15	0.01	Allowance
Al-Zn-ln-Mg-Ti	4.0-7.0	0.020-0.050	---	----	0.50-1.50	---	0.01-0.08	0.1	0.15	0.01	Allowance

Project	Cathode Material	Open-Circuit Potential/V	Open-Circuit Potential/V	Actual Capacitance (hh/ks)	Current Efficiency %	Consumption Efficiency Kg(A·a)	Dissolution Status

Electrochemical Performance	Type 1	-1.18 to -1.10	-1.12 to--1.05	≥2400	≥85	≤3.65	The product easily detaches from the surface and dissolves uniformly.
	Type 2	-1.18 to -1.10	-1.12 to--1.05	≥2600	≥90

Model	Dimensions/mm AXBXC	Weight
AE-1	800x140x60	17
AE-2	800x140x50	15
AE-3	800x140x40	12
AE-4	600x120x50	10

Model	Dimensions/mm AXBXC	Weight
AE-11	300x150x50	5.8
AE-12	300x150x40	4.6

Model	Dimensions/mm AXBXC	Weight
AE-13	300x150x50	5.8
AE-14	300x150x40	4.8

Aluminum Alloy Sacrificial Anodes for Hulls

Chemical composition

Electrochemical Properties

Specification and model

Specification and model

Specification and model
